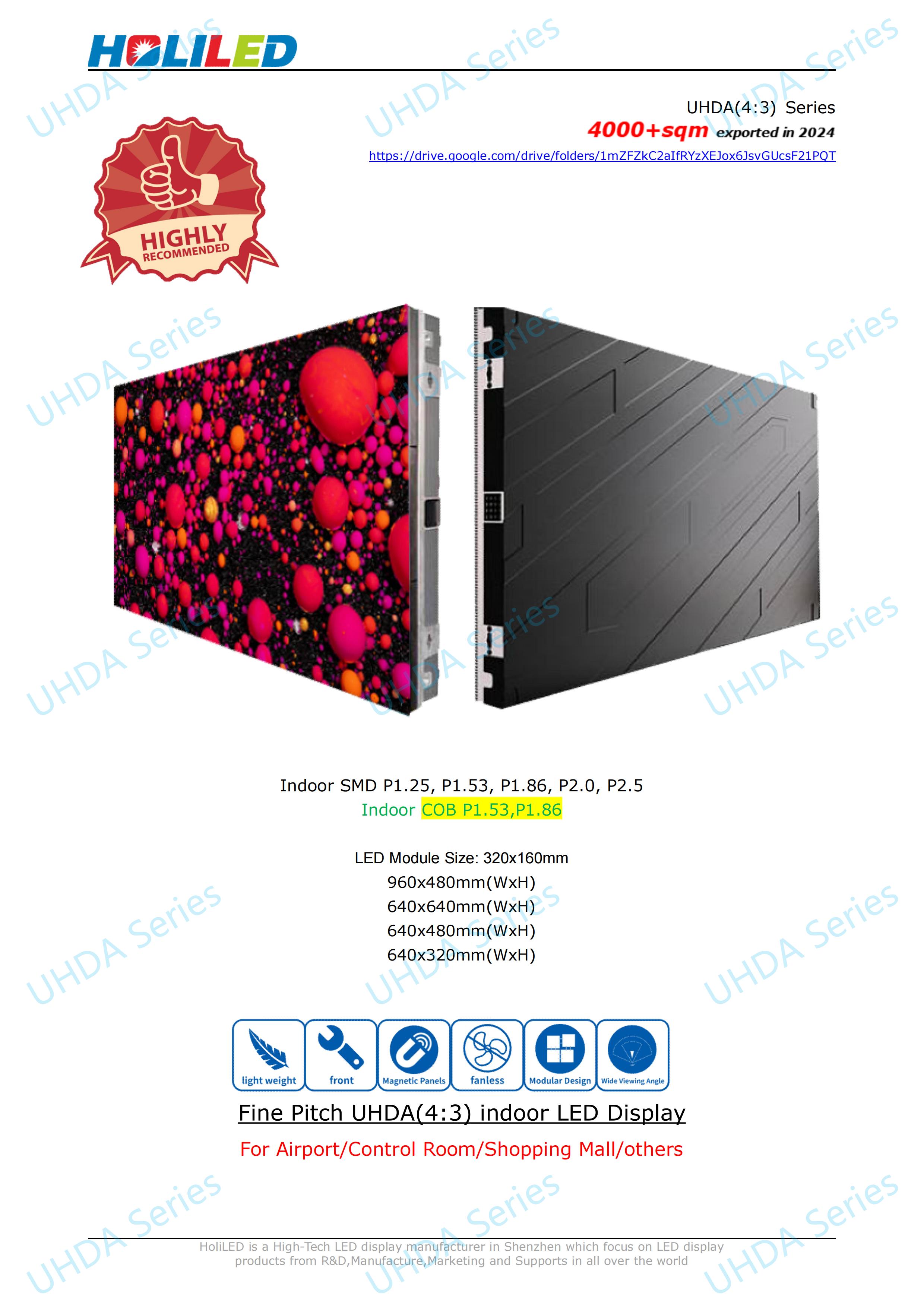

UHDA(4:3) Series
indoor fix with full front service

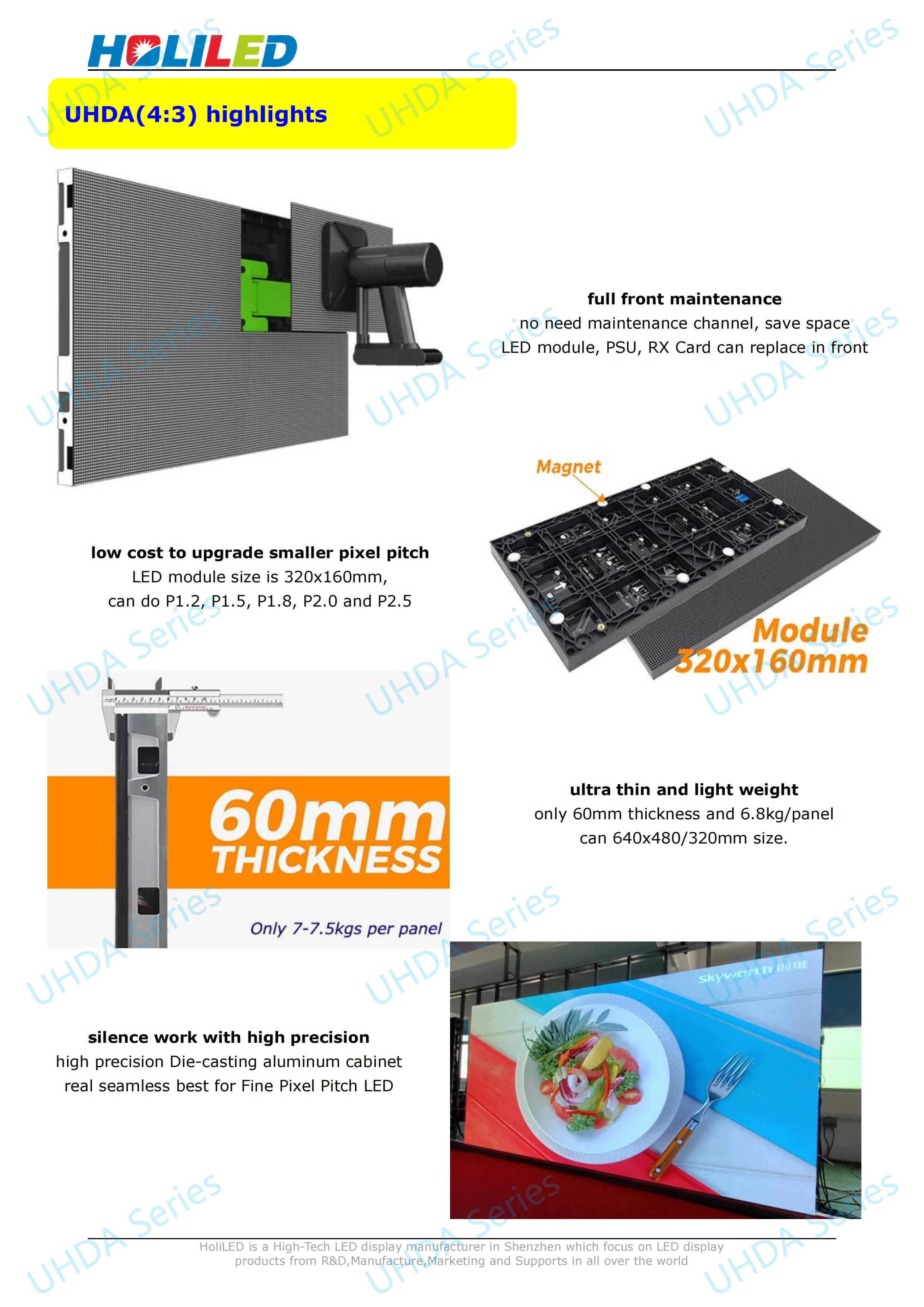

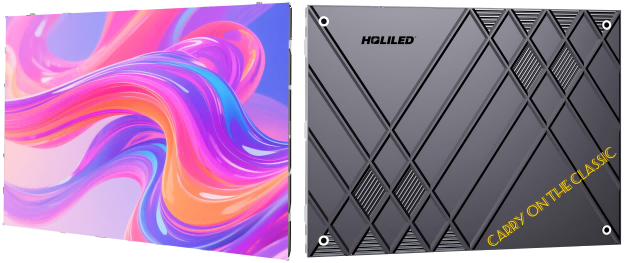

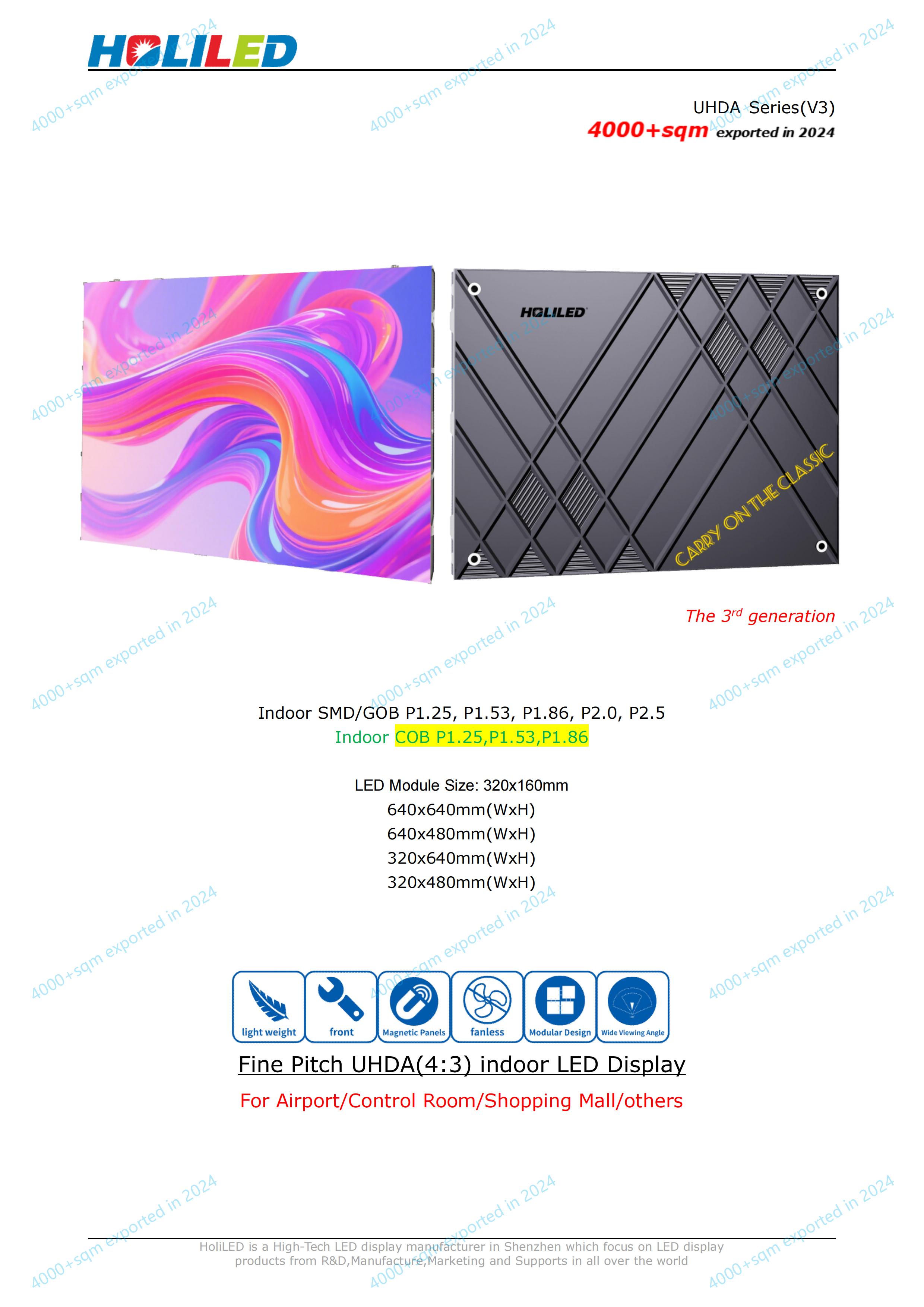

  • the 3rd Generation

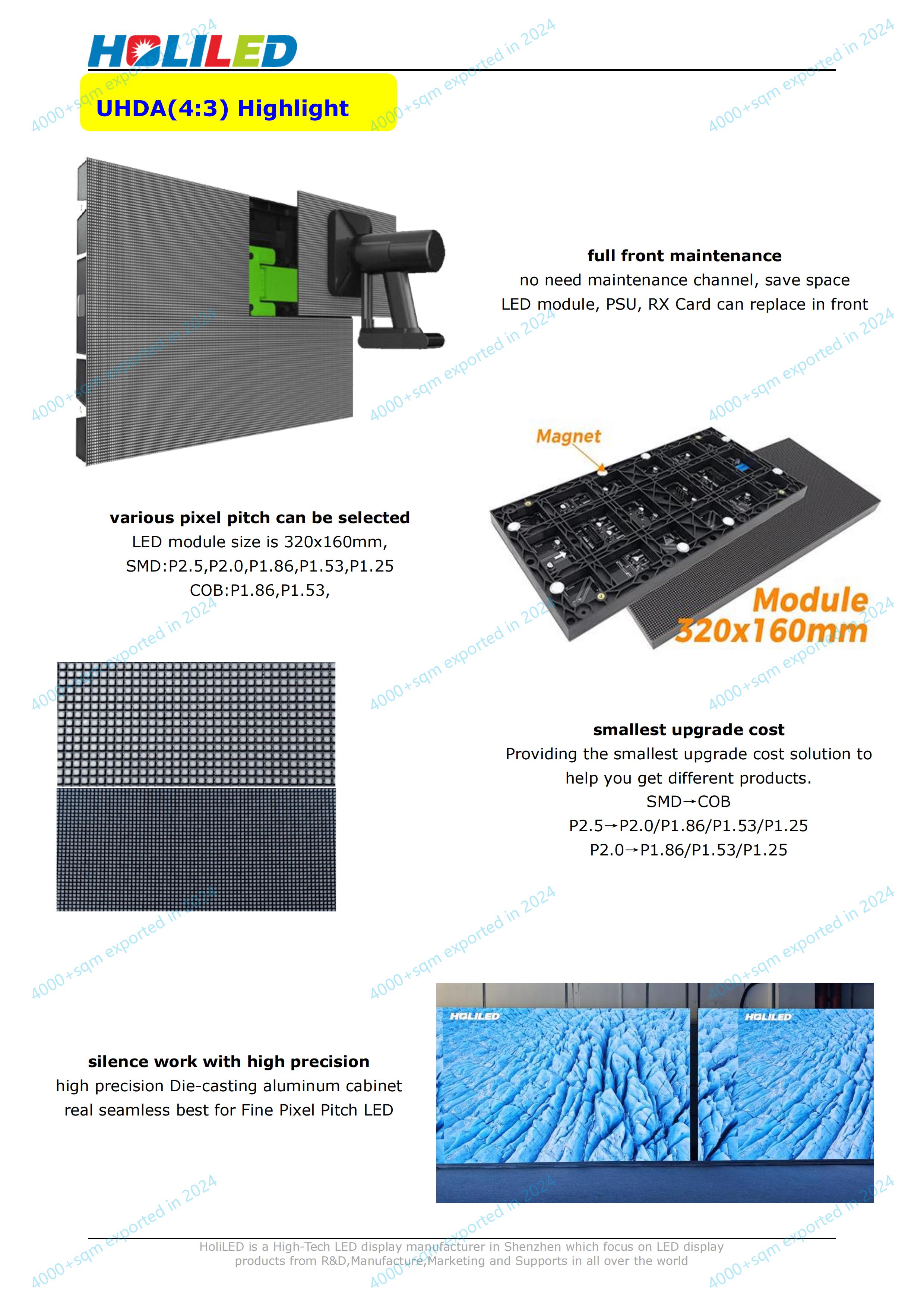

  • Full front maintenance
  • low cost upgrade smaller pixel pitch
  • 4:3 ratio cabinet deisgn
  • silence working and high precision
  • COB/GOB technology is available(options)

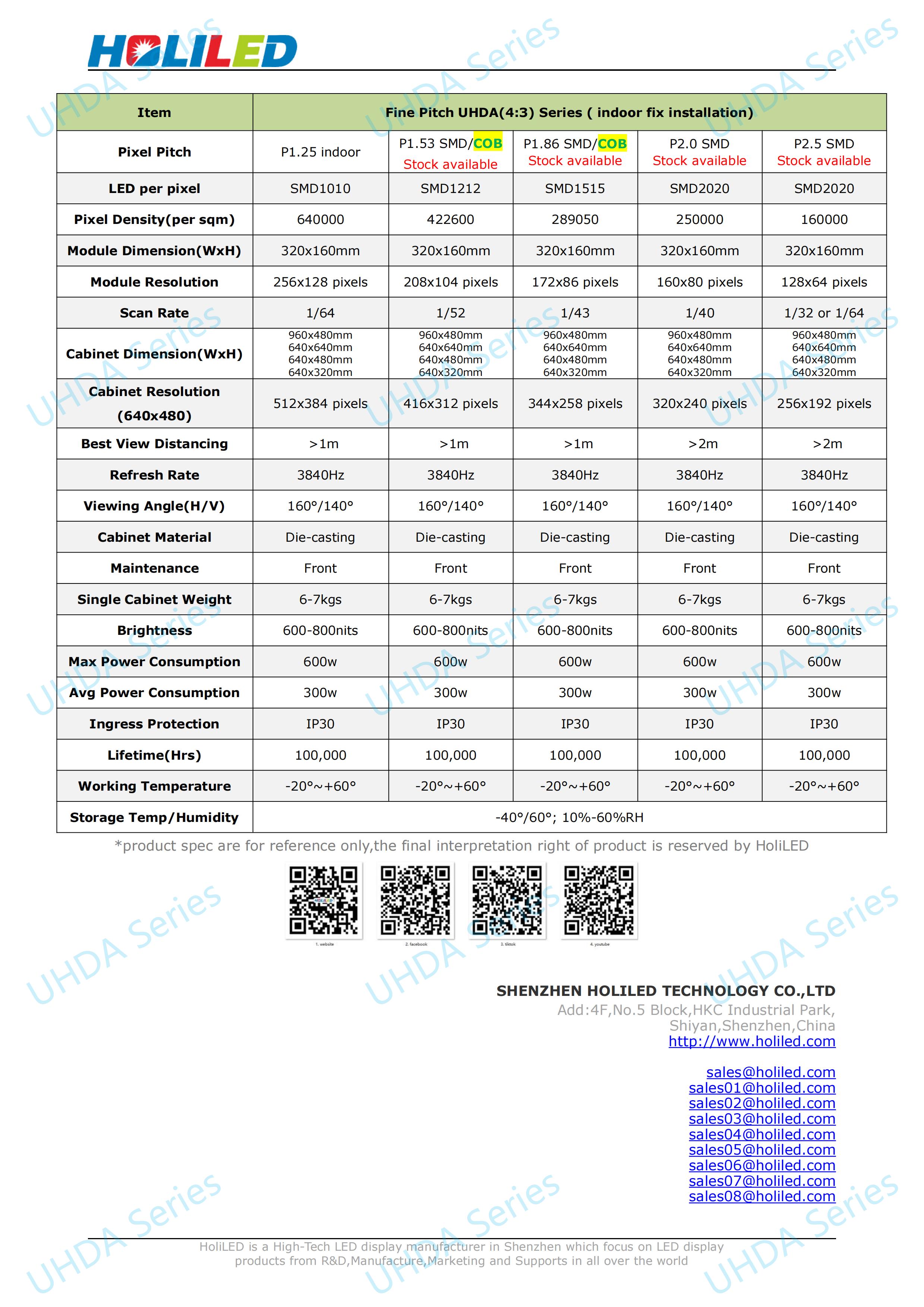

Parameter
Item UHDA series(indoor fixed)
Pixel Pitch P1.25 SMD
Stock available
P1.53 SMD/COB
Stock available
P1.86 SMD/COB
Stock available
P2.0 SMD
Stock available
P2.5 SMD
Stock available
LED per pixel SMD1010 SMD1212 SMD1515 SMD1515 SMD2020
Pixel Density(per sqm) 640,000  422,500  289,050  250,000  160,000
Module Dimension(W×H) 320×160mm
Module Resolution 256×128p 208×104p 172×86p 160×80p 128×64p
Scan Rate 1/64 1/52 1/43 1/40 1/32
Cabinet Dimension
(W×H)
640×640mm, 320×640mm
640×480mm, 320×480mm
640×320mm, 320×320mm
640×160mm, 320×160mm
Cabinet Resolution
(640×480mm)
512×384p 418×312p 344×258p 320×240p 256×192p
Refresh Rate 3840Hz
Viewing Angle(H/V) 160°/140°
Cabinet Material Die-casting Aluminium
Maintenance Front
Single Cabinet Weight 6~7kgs
Brightness 600-800nits
Max Power Consumption 480W/sqm
Avg Power Consumption 160W/sqm
Ingress Protection IP30
Lifetime(Hrs) 100,000
Download and Video
  • To ensure you can find the right solution for your projects,pls download the detail product information to know more.

    if you haven't find what you are looking for,pls contact with our team via sales@holiled.com.

Specification Download
