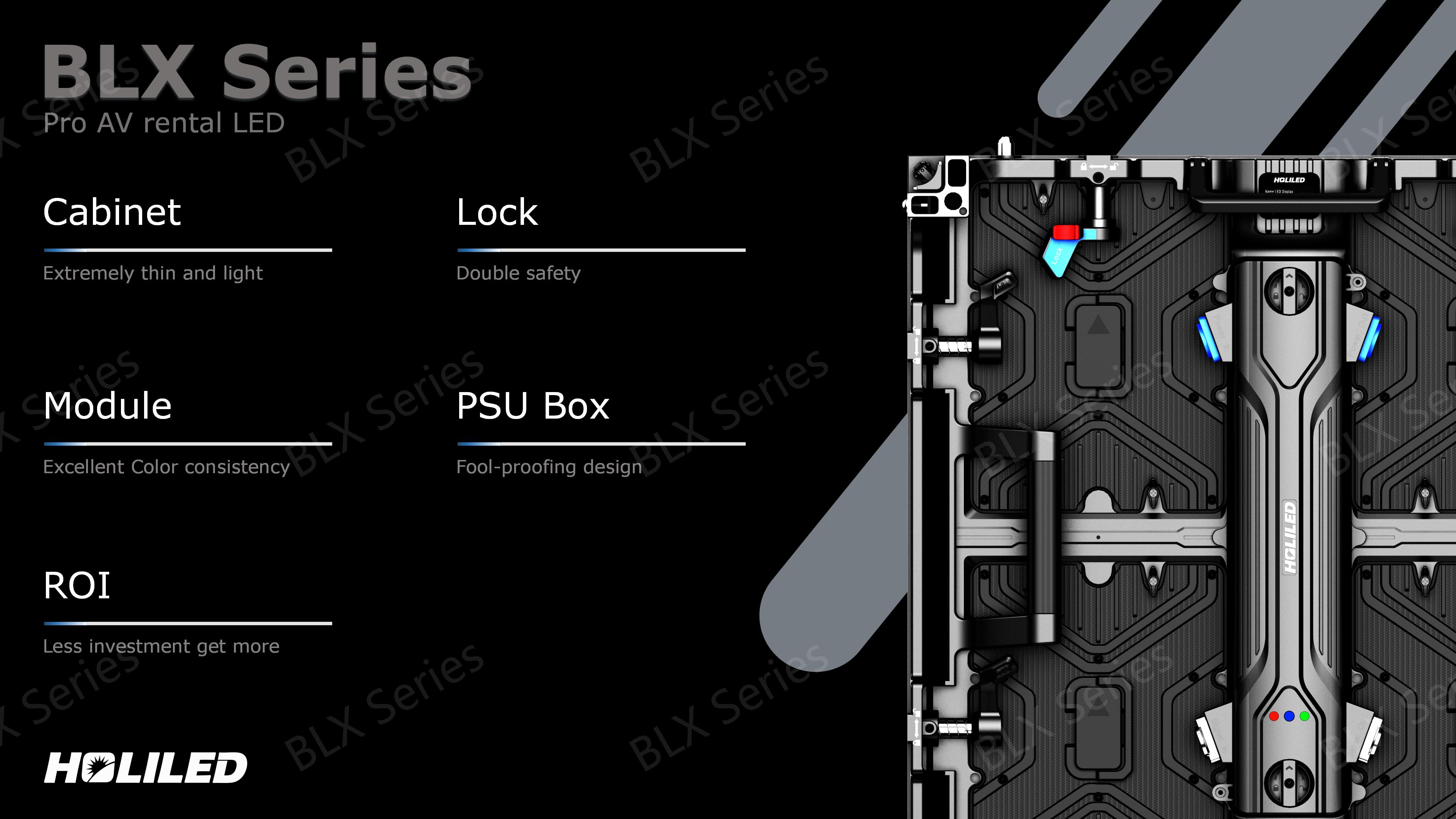

BLX Series
BEST for AV production
  • 4 Layers PCB design

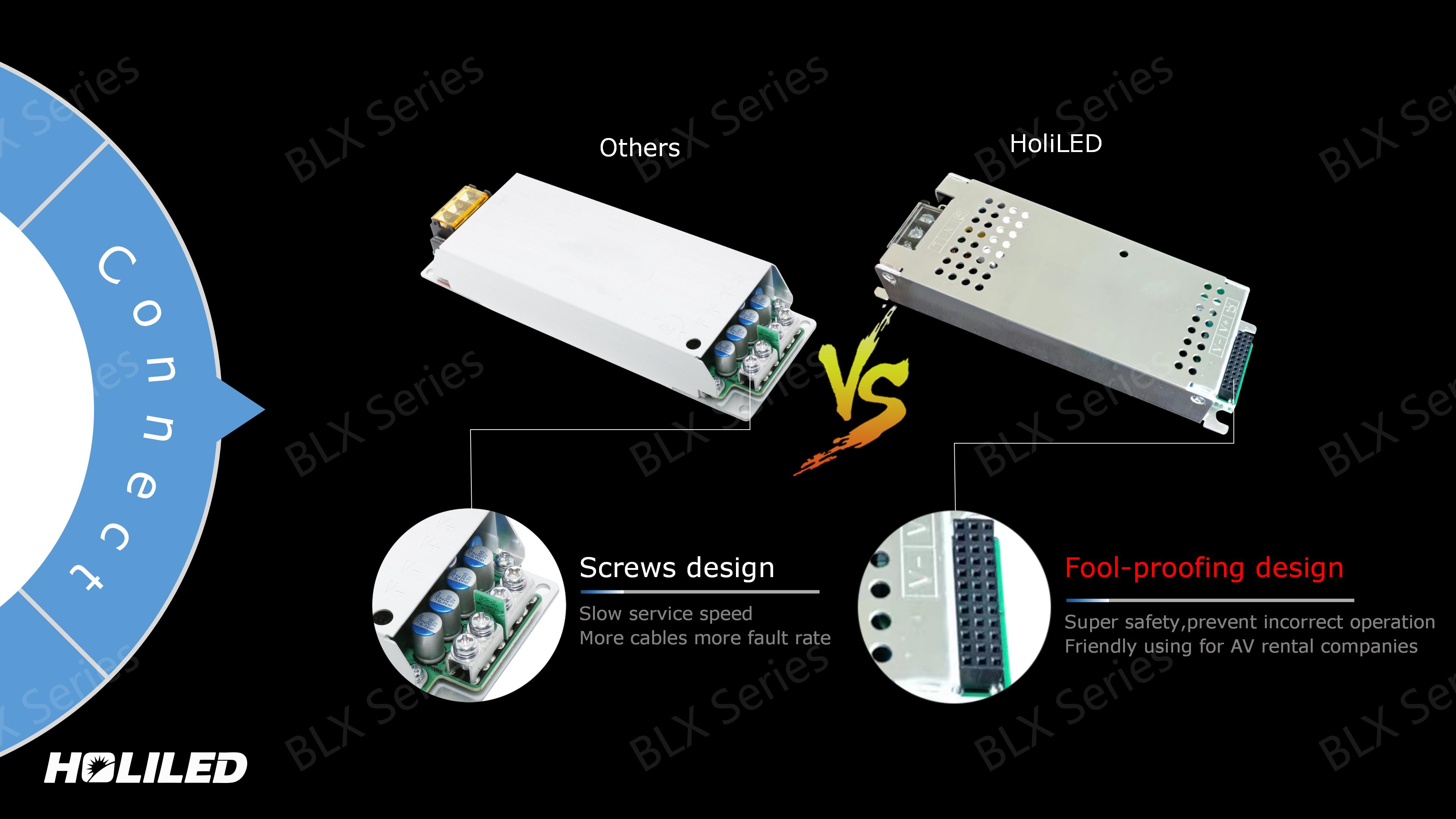

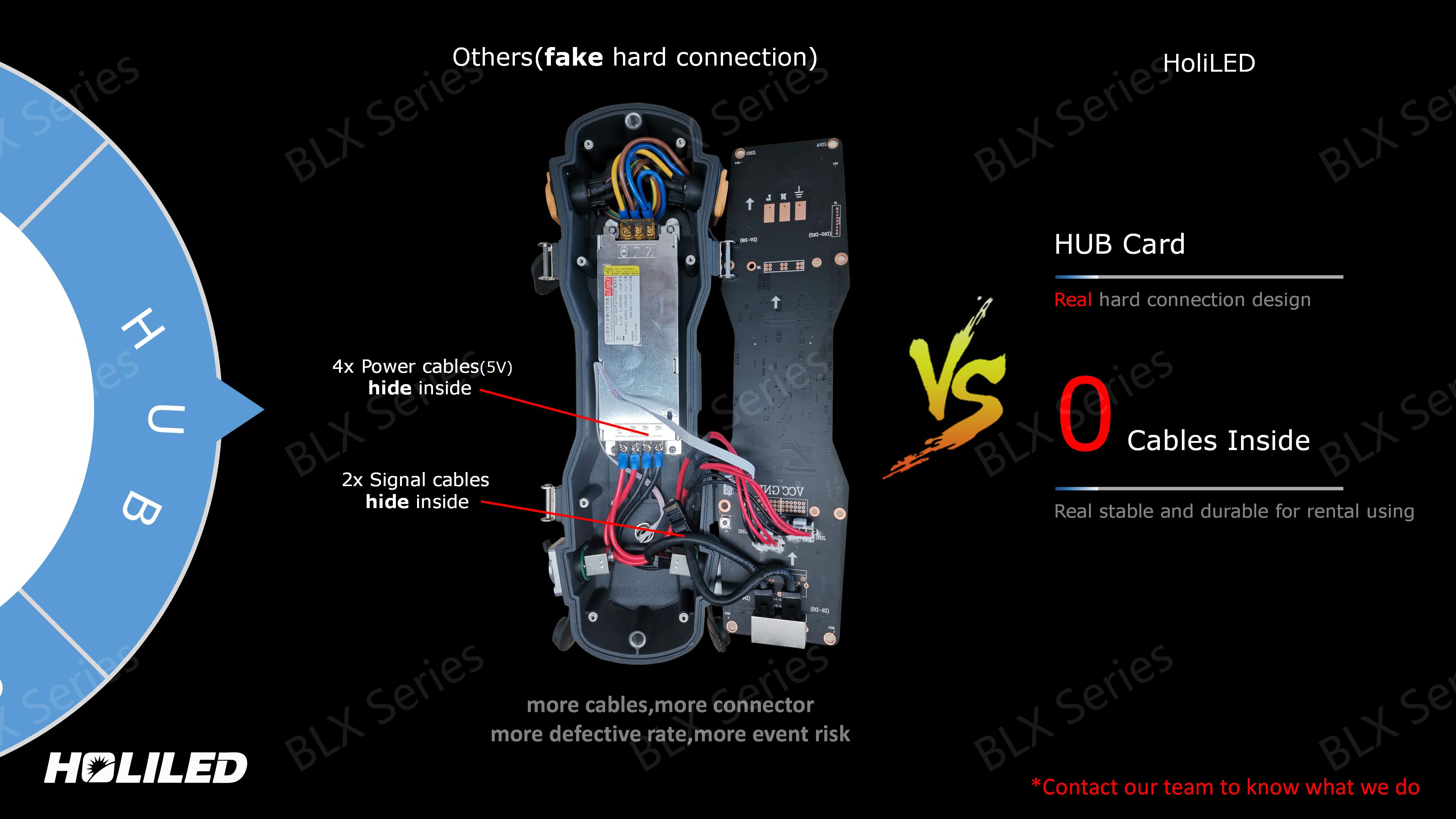

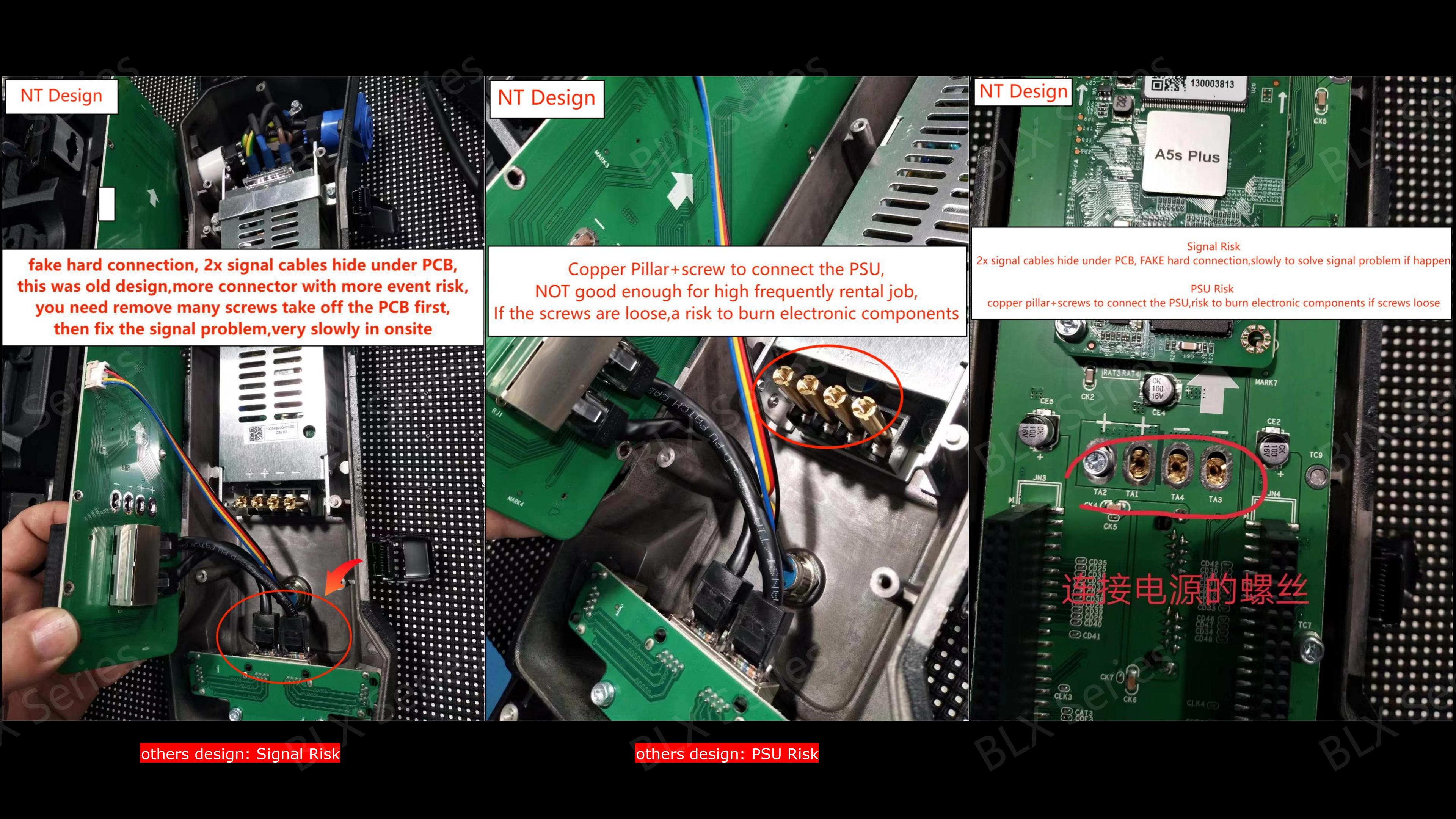

  • real hard connection, zero cable inside
  • 100% color calibration
  • KC/MET/EMC/Class A are compatible














Parameter
Item series BLX(PRO indoor rental)
Pixel Pitch P2.6 indoor P2.97 indoor P3.91 indoor
LED per pixel SMD1515 SMD1515 SMD2020
Pixel Density(per sqm) 147,456 112,896 65,536
Module Dimension(W×H) 250×250mm
Module Resolution 96×96p 84×84p 64×64p
Scan Rate 1/24 1/21 1/16

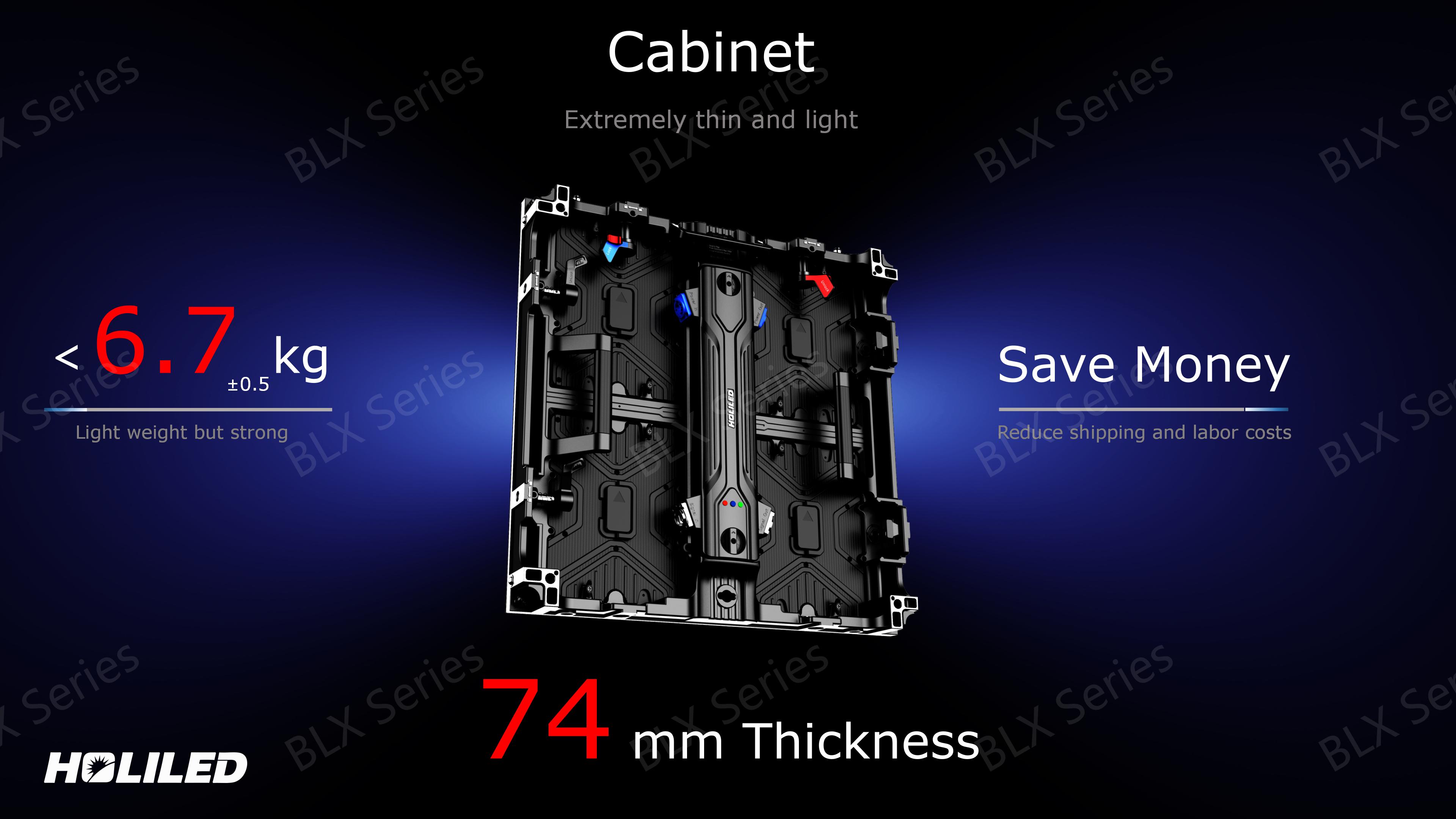

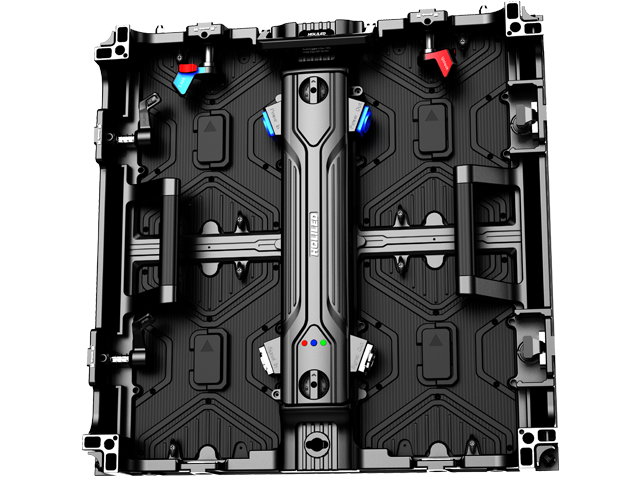

Cabinet Dimension
(W×H×D)
500×500×75mm
Cabinet Resolution 192×192p 168×168p 128×128p
Refresh Rate 3840Hz/7680Hz
Viewing Angle(H/V) 160°/160°

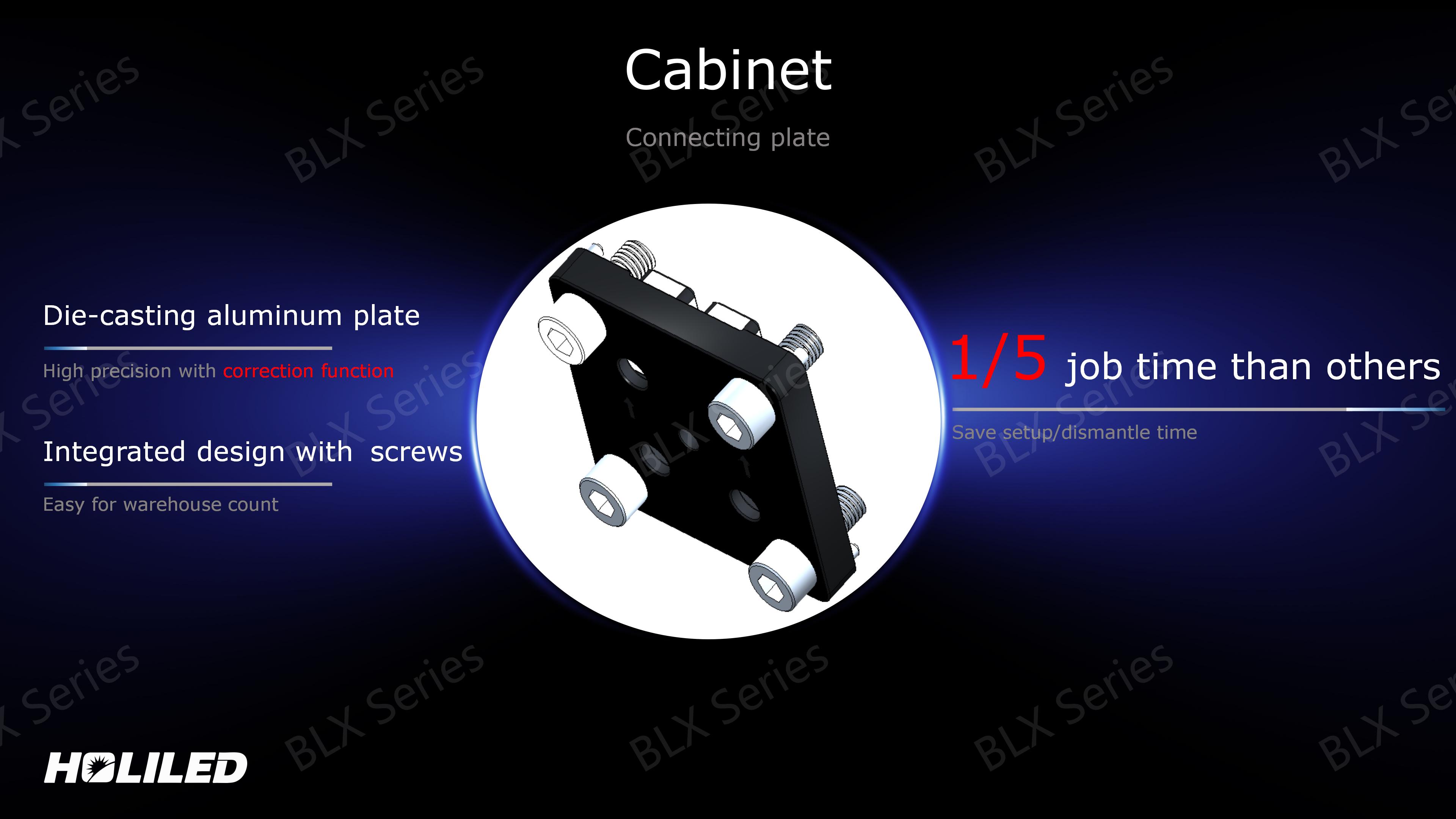

Cabinet Material Die-casting Aluminium

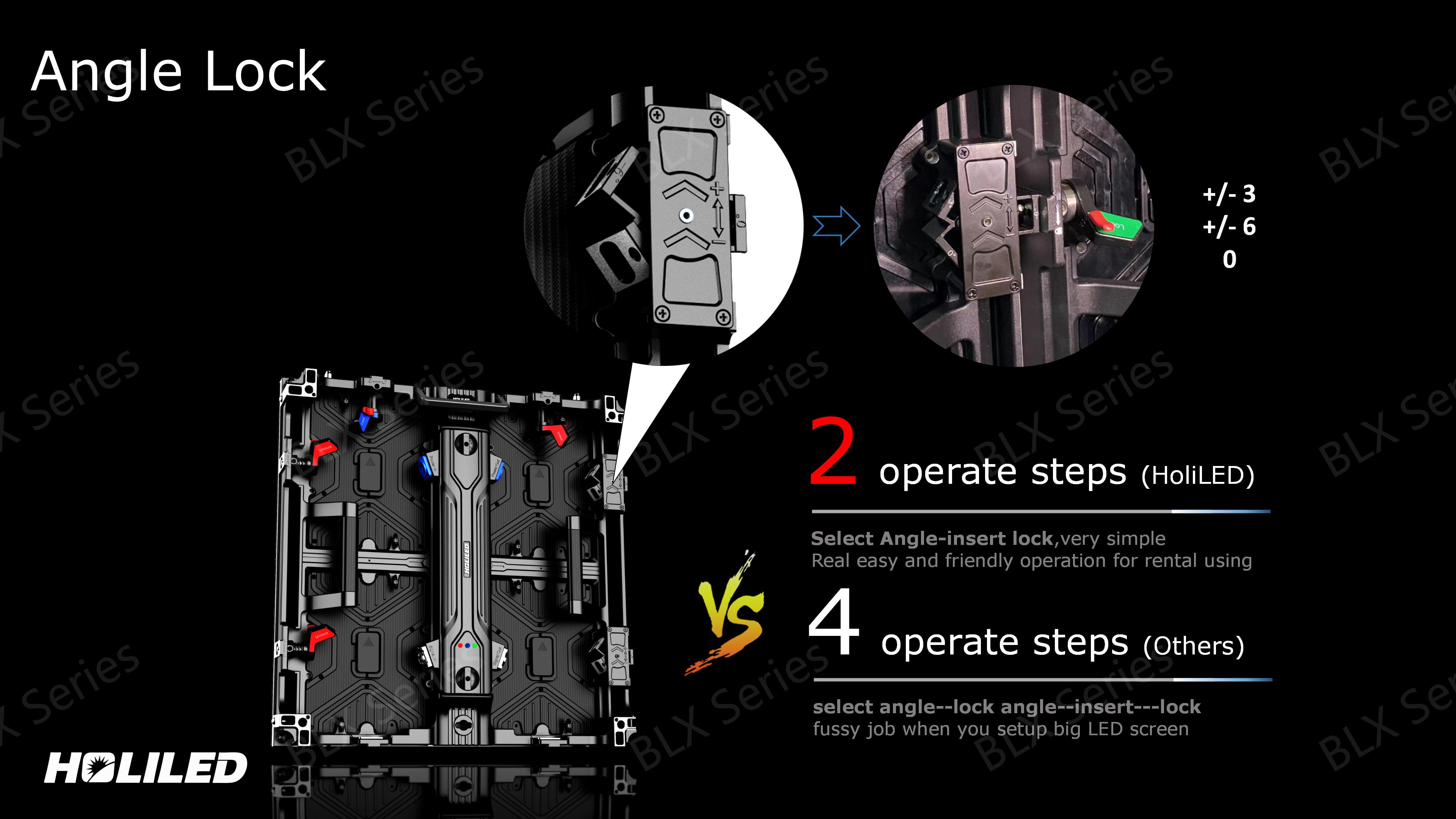

Curve (options) ±3°~±6°
45 degree (options) Yes
Maintenance Front/Rear
Single Cabinet Weight ≈7kgs
Brightness 1000-1100nits/1500-1700nits
Max Power Consumption 640W/sqm
Avg Power Consumption 220W/sqm
Ingress Protection IP30
Lifetime(Hrs) 100,000
