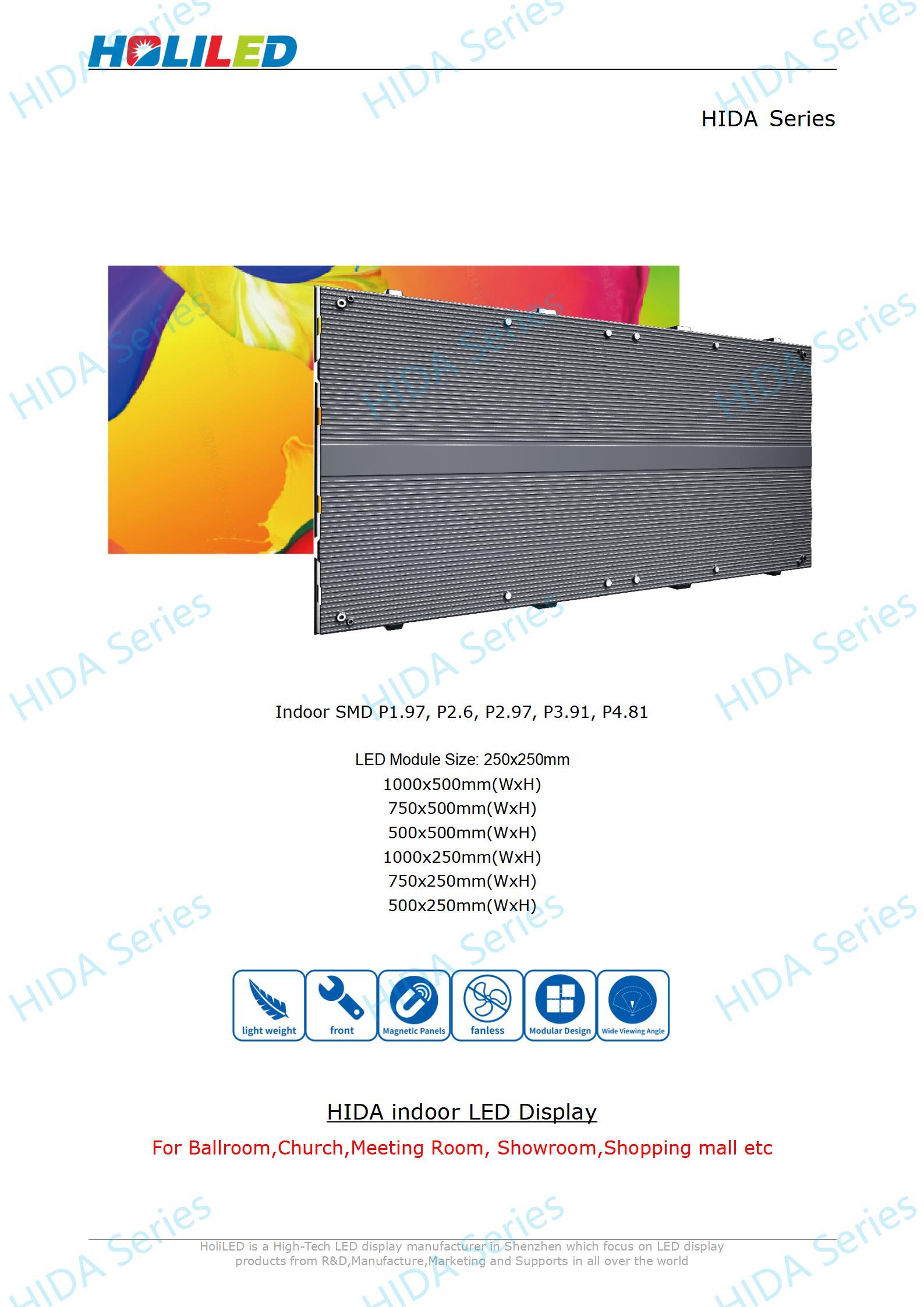

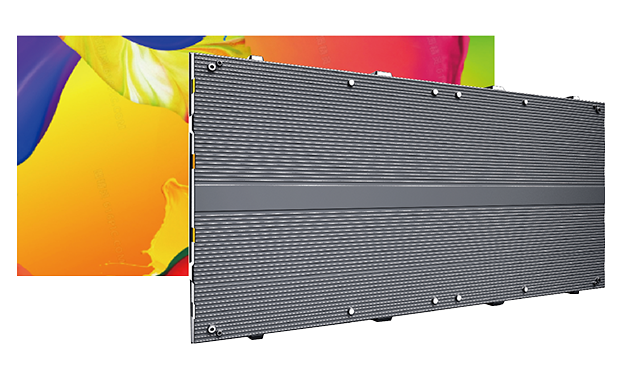

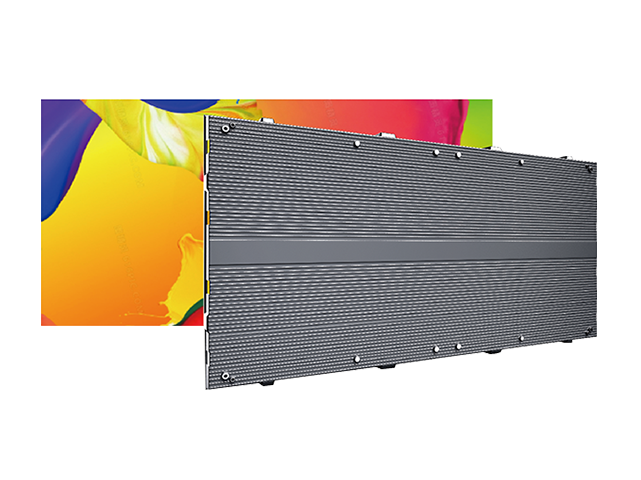

HIDA Series
the better indoor FIX solution

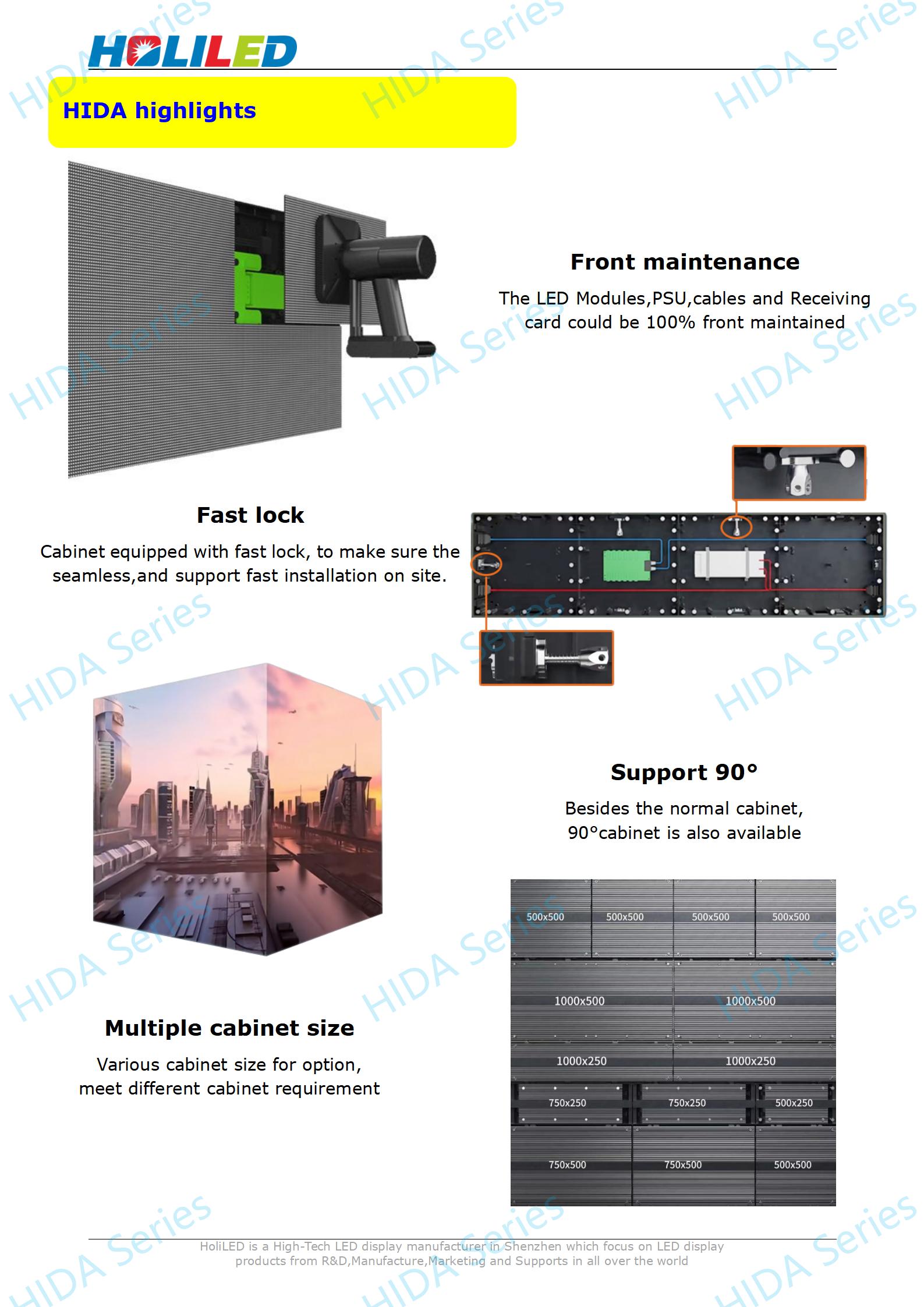

  • Full front maintenance
  • low cost upgrade smaller pixel pitch
  • Multiple cabinet size
  • can do 90 degree
  • cost performance










Parameter
Item HIDA series(fixed installation)
Pixel Pitch P1.97 indoor P2.60 indoor P2.97 indoor P3.91 indoor P2.97 indoor
LED per pixel SMD1212 SMD1415 SMD2020 SMD2020 SMD1415
Pixel Density(per sqm) 258,064 147,456 112,896 65,536 112,896
Module Dimension(W×H) 250×250mm
Module Resolution 127×127p 96×96p 84×84p 64×64p 84×84p
Scan Rate 1/32 1/32 1/28 1/16 1/21
Cabinet Dimension
(W×H×D)
1000×500×62mm,1000×250×62mm
750×500×62mm, 750×250×62mm
500×500×62mm, 500×250×62mm
Cabinet Resolution
(1000×500mm)
508×254p 384×192p 336×168p 256×128p 336×168p
Refresh Rate 3840Hz
Viewing Angle(H/V) 160°/140°
Cabinet Material Die-casting Aluminium
Maintenance Front
Single Cabinet Weight ≈14kgs
Brightness 700-800nits 3000-4000nits
Max Power Consumption 500W/sqm 600W/sqm
Avg Power Consumption 170W/sqm 200W/sqm
Ingress Protection IP30
Lifetime(Hrs) 100,000
Download and Video
  • To ensure you can find the right solution for your projects,pls download the detail product information to know more.

    if you haven't find what you are looking for,pls contact with our team via sales@holiled.com.

Specification Download
