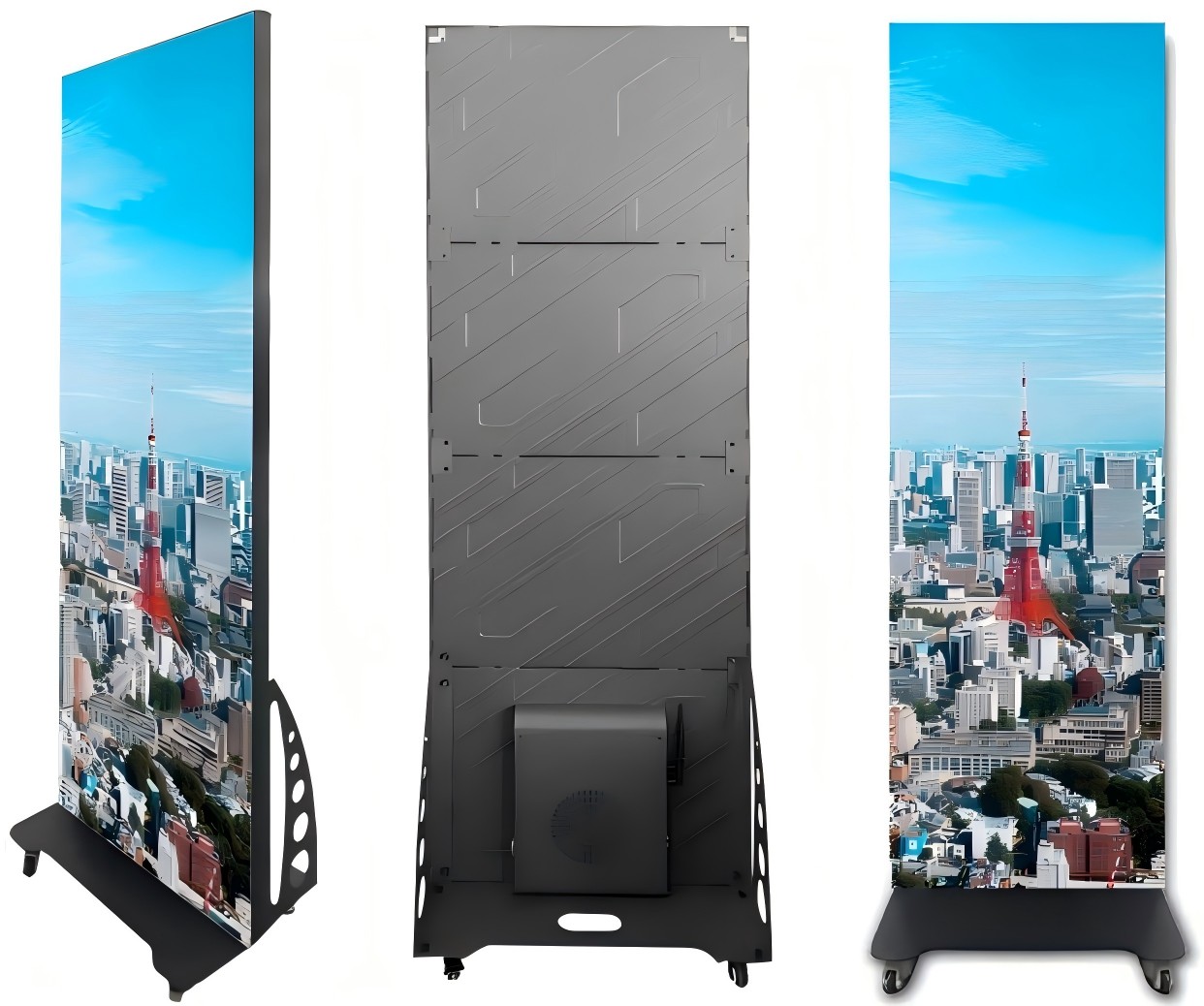

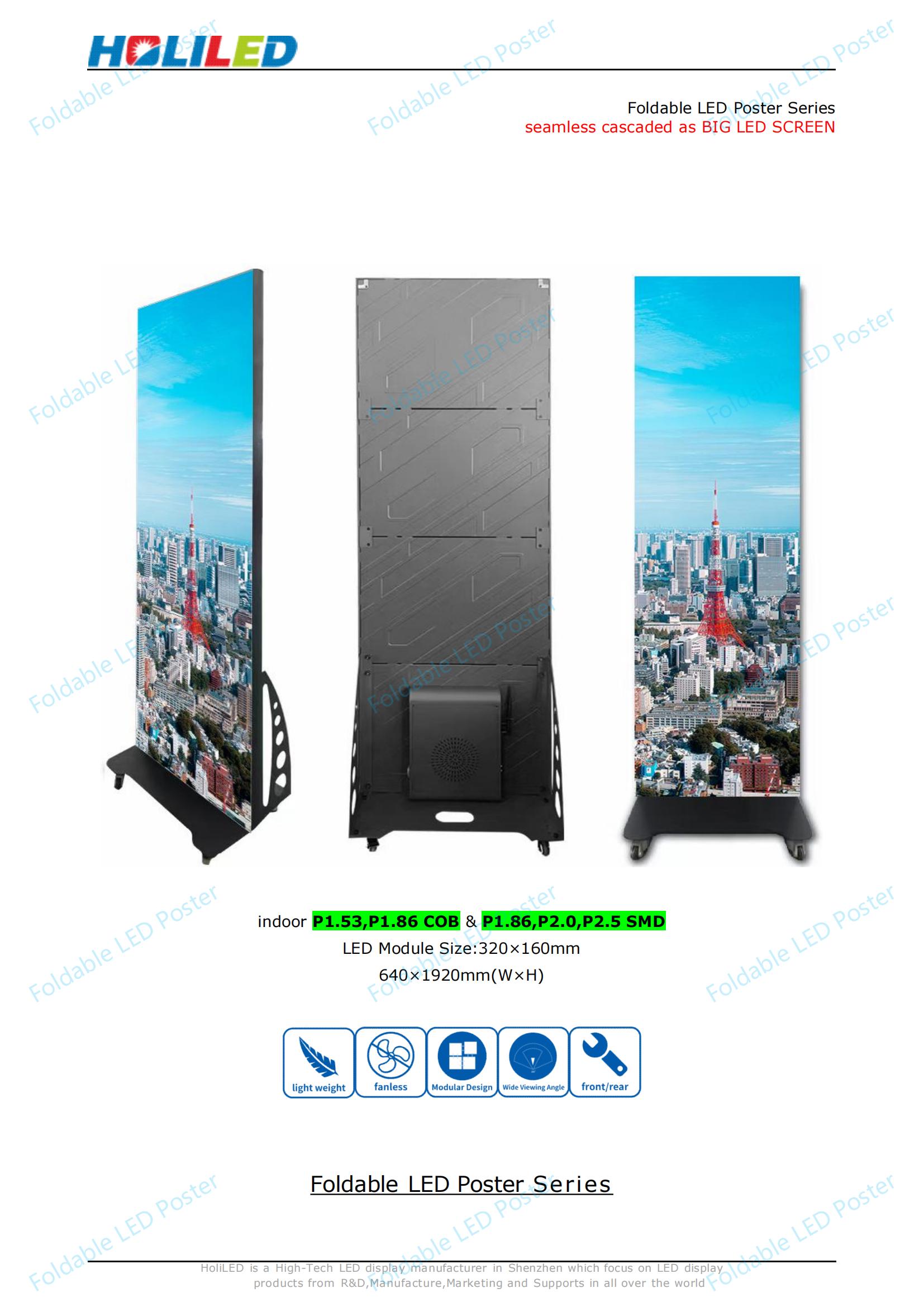

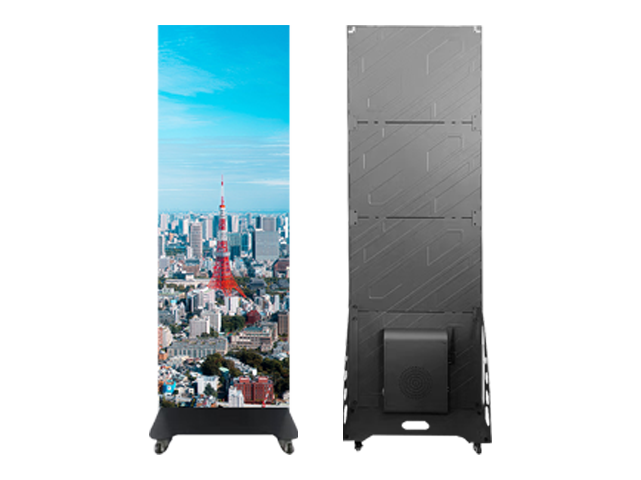

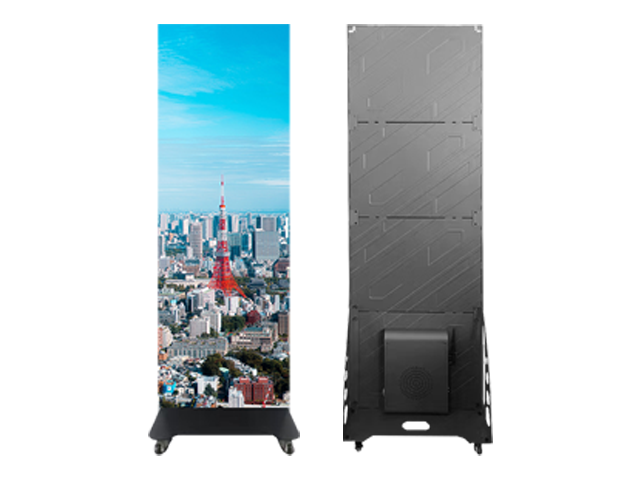

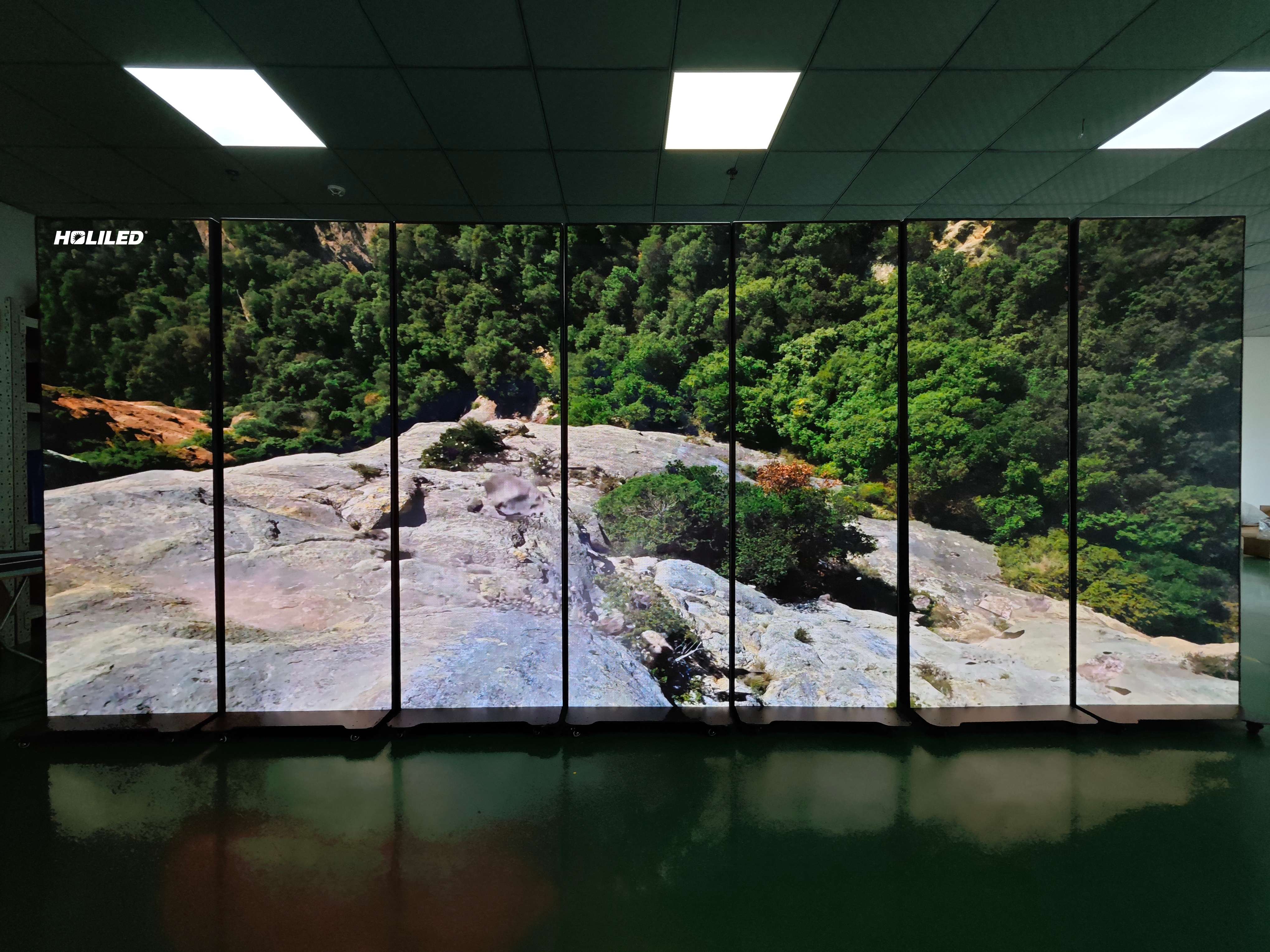

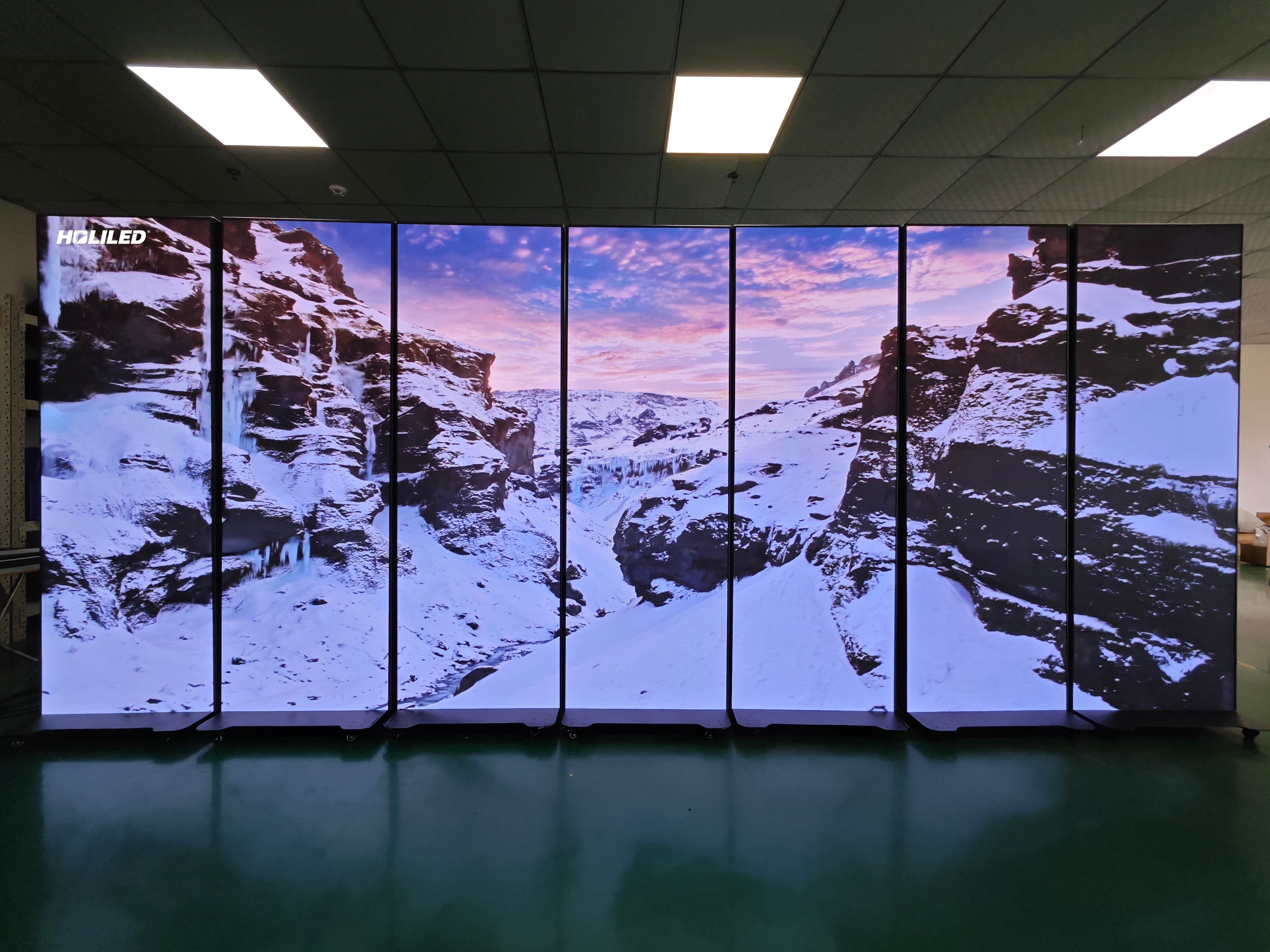

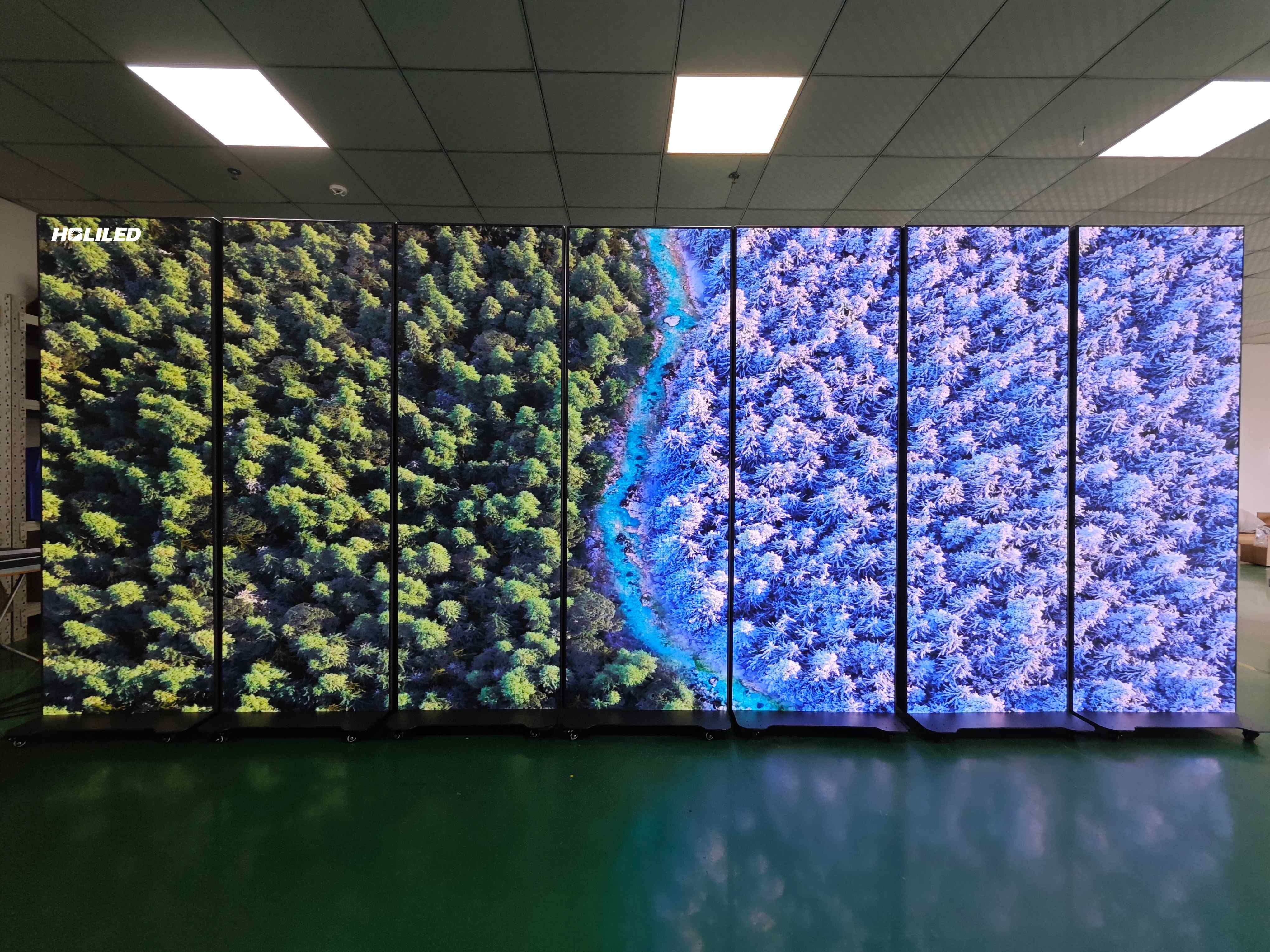

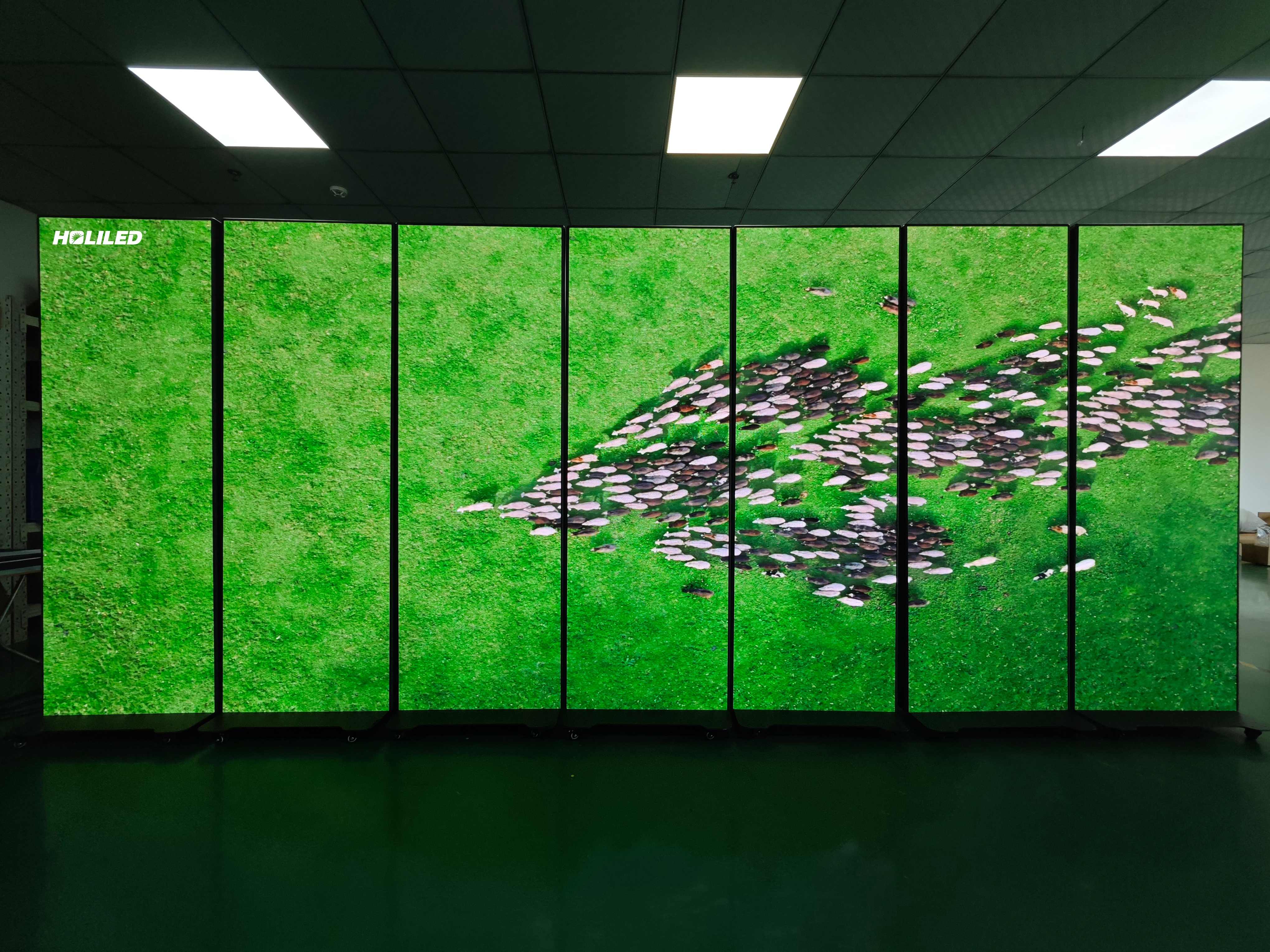

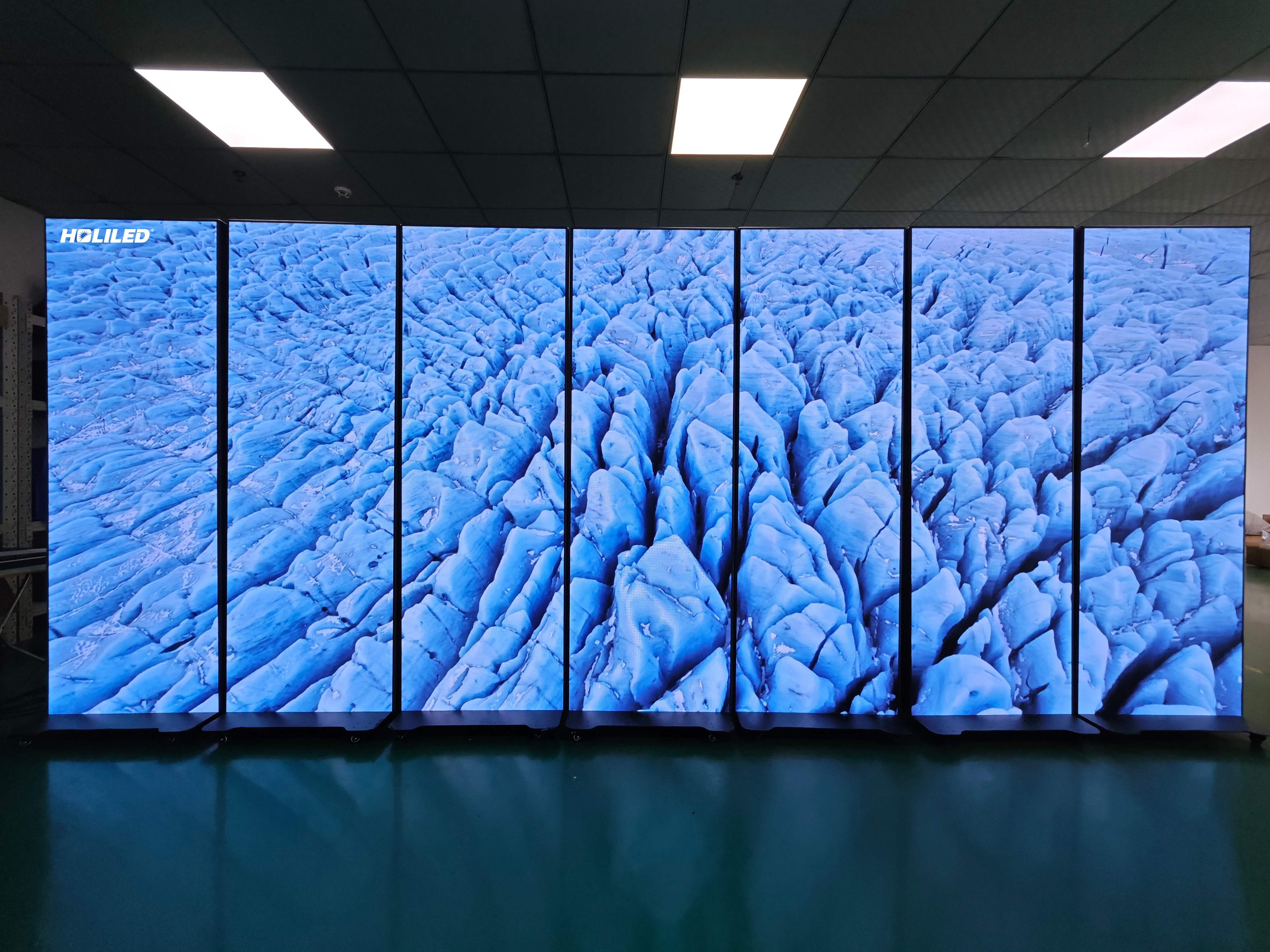

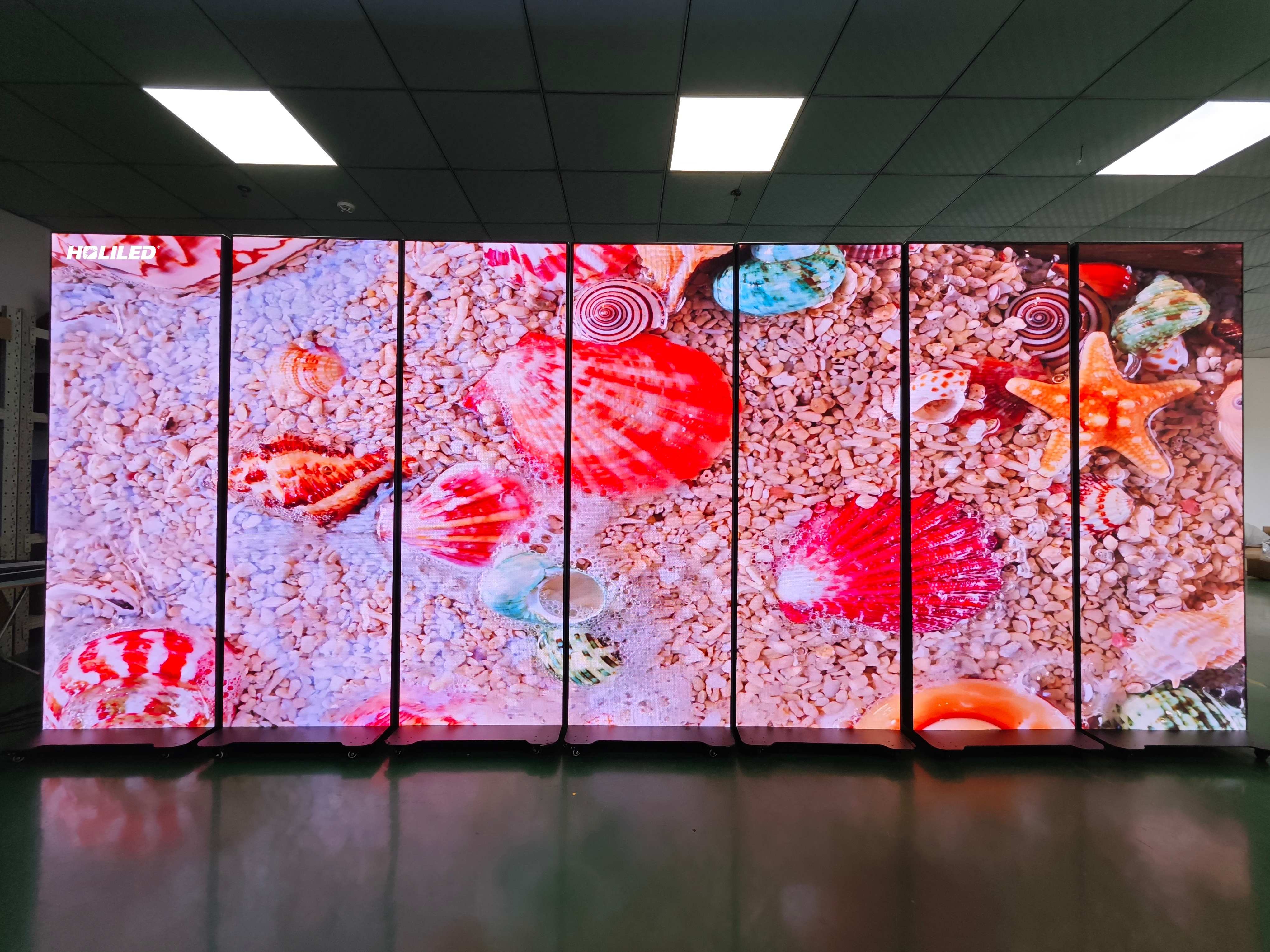

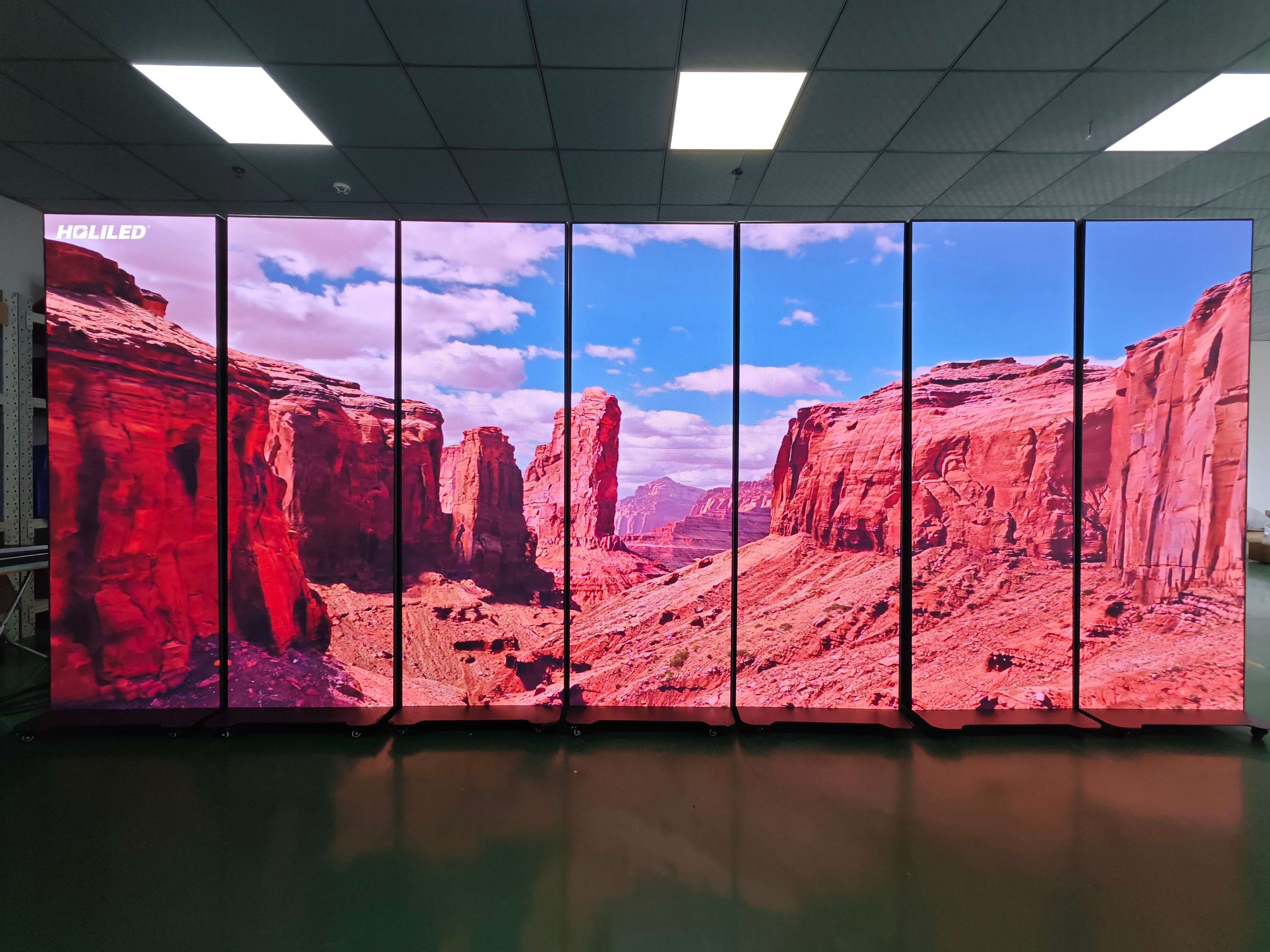

| Item | LED Foldable Poster series | |||||
| Pixel Pitch | P1.25 COB | P1.53 COB | P1.86 COB | P1.86 SMD | P2.0 SMD | P2.5 SMD |
| LED per pixel | RGB Flip Chip | RGB Flip Chip | RGB Flip Chip | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density(per sqm) | 640,000 | 422,600 | 289,050 | 289,050 | 250,000 | 160,000 |
| Module Dimension(W×H) | 320×160mm | |||||
| Module Resolution | 256×128p | 208×104p | 172×86p | 172×86p | 160×80p | 128×64p |
| Scan Rate | 1/64 | 1/52 | 1/43 | 1/43 | 1/40 | 1/32 |
| Cabinet Dimension(W×H) | 640×480mm | |||||
| Cabinet Resolution | 512×384p | 418×312p | 344×258p | 344×258p | 320×240p | 256×192p |
| Poster Size | 660×2000mm | |||||
| Display Area | 640x1920mm | |||||
| Refresh Rate | 3840Hz | |||||
| Viewing Angle(H/V) | 160°/140° | |||||
| Cabinet Material | Die-casting Aluminium | |||||
| Maintenance | Front | |||||
| Single Poster Weight | ≈35kgs/1set | |||||
| Brightness | 600nits | |||||
| Max Power Consumption | 600W/1set | |||||
| Avg Power Consumption | 200W/1set | |||||
| Ingress Protection | IP30 | |||||
| Lifetime(Hrs) | 100,000 | |||||
To ensure you can find the right solution for your projects,pls download the detail product information to know more.
if you haven't find what you are looking for,pls contact with our team via sales@holiled.com.
Specification Download
